深圳市美其医疗器械设计制造有限公司
Shenzhen Medikee Design & Manufacture Co., Ltd.

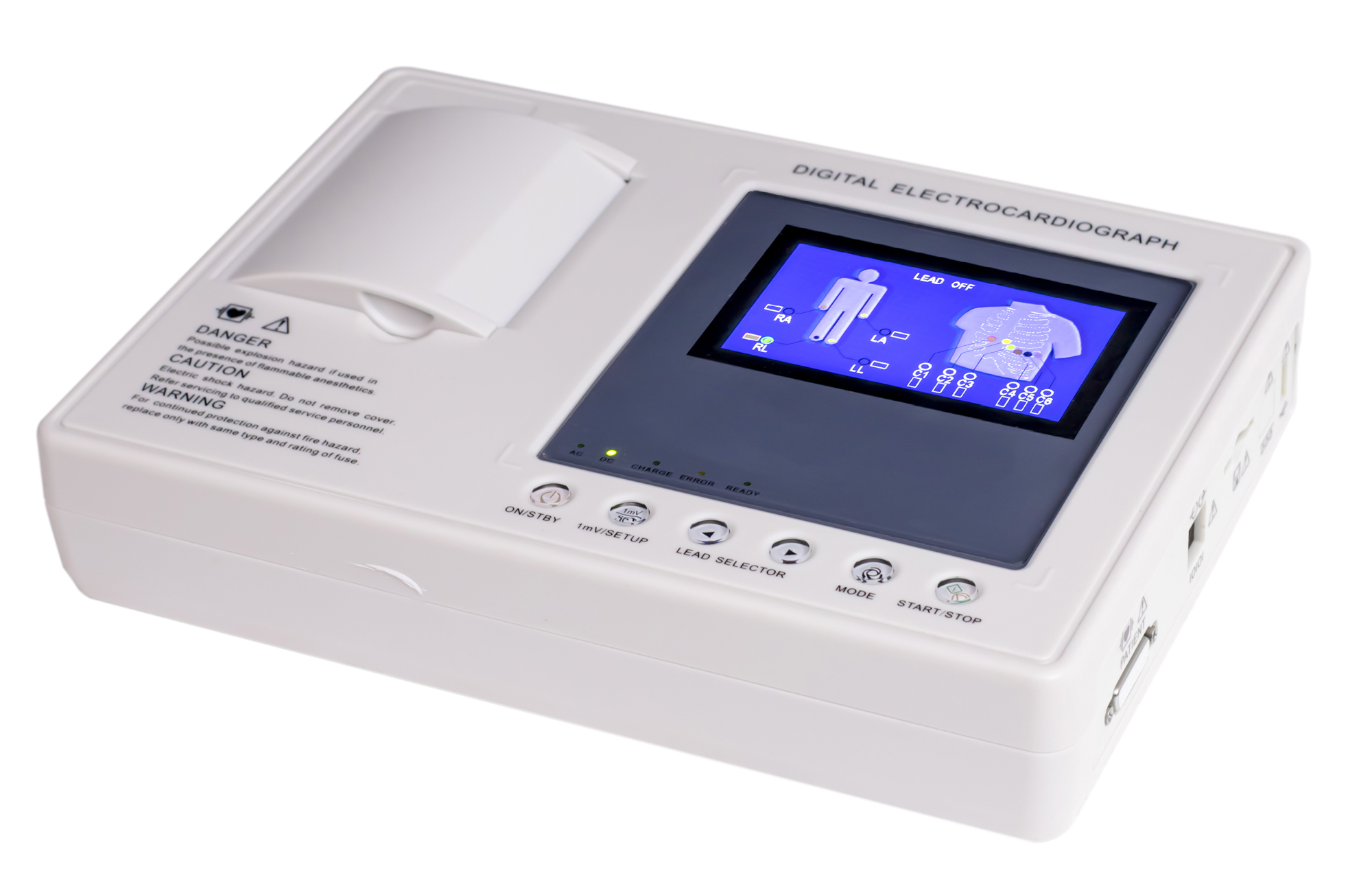

Model: MK-1203B 3channel ECG machine(4.3" display)
l 4.3inch 480*272 TFT color display;
l 12-lead ECG simultaneous acquisition and display on screen
l Multiple Operation models: Manual/Auto/Rhythm analysis
l 3-lead recording with a rhythm lead and printing on roll paper
with interpretation
l Digital filters to eliminate EMG/AC interference and prevent
baseline drift.
l Lead-off detection
l 20m*80mm roll type thermal paper
l Built-in rechargeable 6000mAh Li-ion battery, 4 hours
continuous working,110-230V,50/60Hz AC power supply
l 110-230V,50/60Hz AC power supply
l 200 patient reports save/replay
l Built-in USB/RS232 interface.

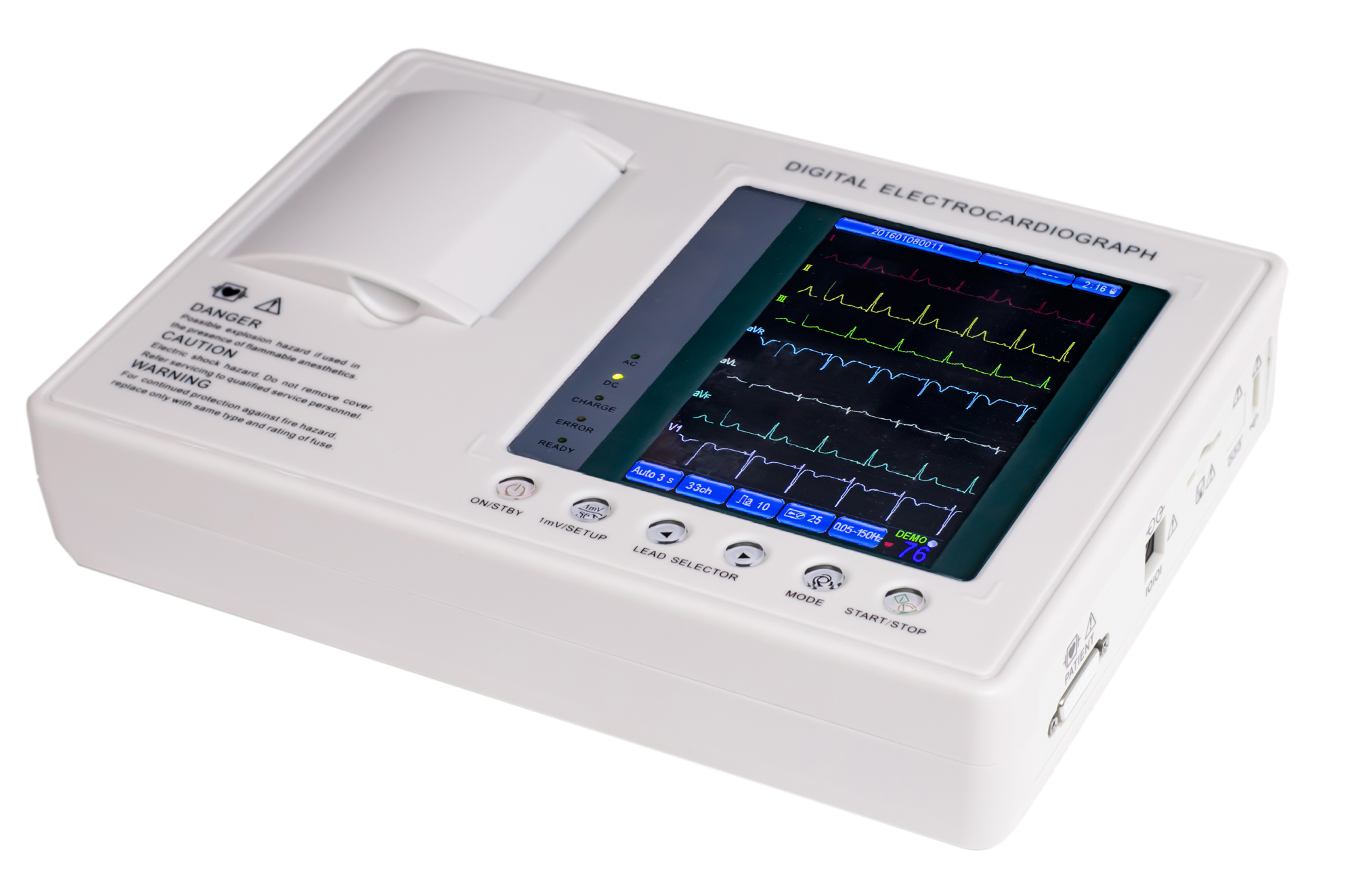

Model: MK-1203C 3channel ECG machine (7" display)
l 7inch 480*680 color display with wide angle view
l 80mm*20m roll type thermal paper
l 12-lead ECG simultaneous acquisition and display on screen
l Multiple Operation models: Manual/Auto/Rhythm analysis
l 3-lead recording with a rhythm lead
l Digital filters to eliminate EMG/AC interference and
prevent baseline drift.
l Lead-off detection
l Built-in rechargeable 6000mAh Li-ion battery, 4 hours
continuous working,110-230V,50/60Hz AC power supply
l 110-230V,50/60Hz AC power supply
l 200 patient reports save/replay
l Built-in USB/RS232 interface

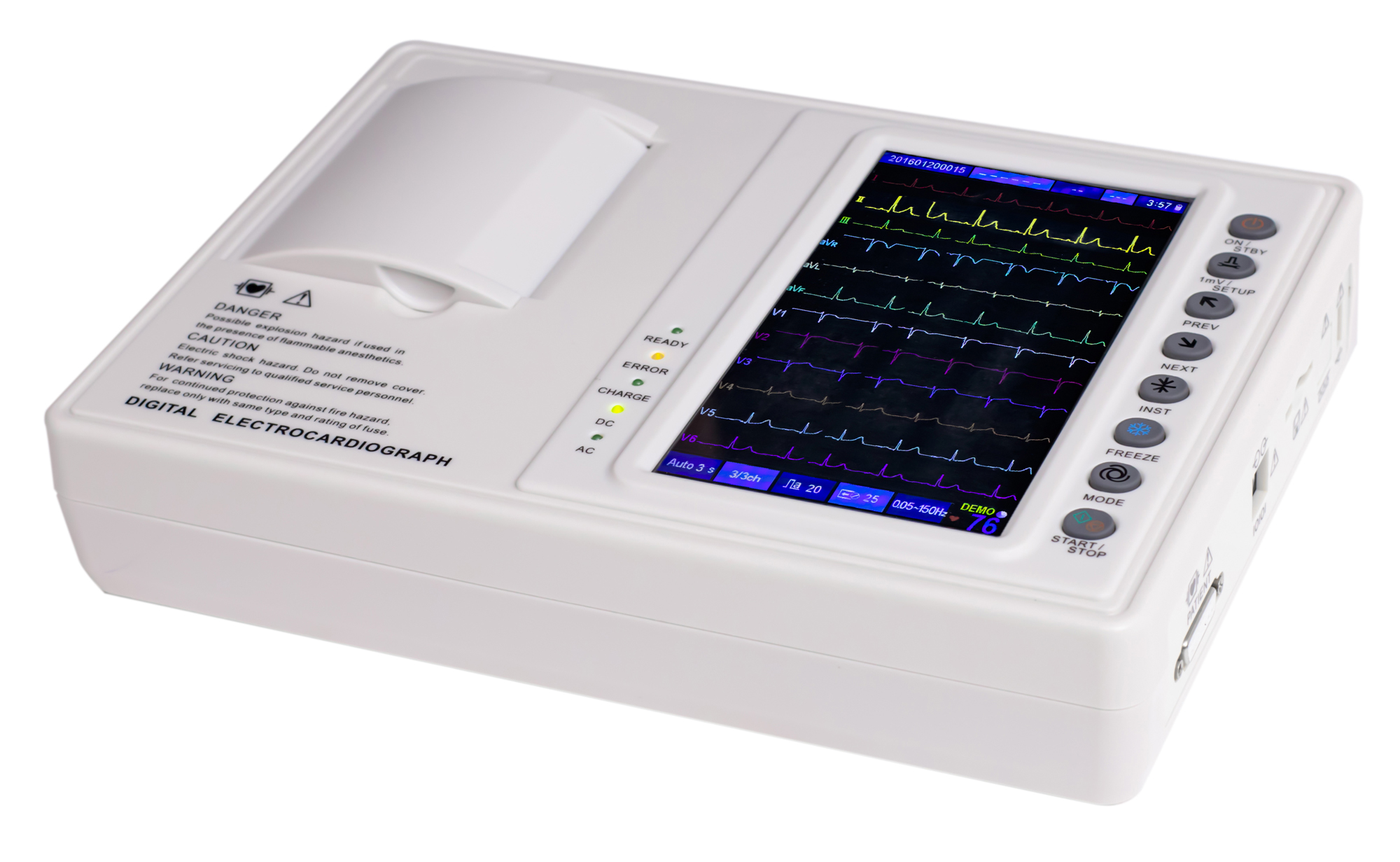

Model: MK-1203D 3channel ECG machine (7" touchscreen)
l 7inch 480*800 touchscreen
l Patient name, sex, age and hospital name can be entered
by touchscreen virtual keyboard
l 80mm*20m roll type thermal paper
l 12-lead ECG simultaneous acquisition and display on screen
l Multiple Operation models: Manual/Auto/Rhythm analysis
l 3-lead recording with a rhythm lead
l Digital filters to eliminate EMG/AC interference and prevent
baseline drift.
l Lead-off detection
l Built-in rechargeable 6000mAh Li-ion battery, 4 hours
continuous working,
l 200 patient reports save/replay
l Built-in USB/RS232 interface
l PC connection for data transfer by WI-FI(Optional)
